Platform Schematic
Club App Flow
The complete system — from fan sign-up to live vote to club revenue — mapped step by step.
Fan Registration
Sign up · Choose club · Profile created
Fan Signs Up
Email + Password
Auth Layer
BetterAuth session
Choose Club
AFL · Soccer · Rugby
Fan Profile Created
MySQL · Drizzle ORM
Token Purchase
Buy Club Tokens via Stripe · Wallet credited
Fan Dashboard
Token Wallet
Buy Tokens
Select quantity
Stripe Checkout
Secure payment
Balance Updated
Tokens credited instantly
Live Voting
Coach posts poll · Fans vote · Results stream in real time
Coach Posts Poll
Coach Interface
Fan Notified
Push notification
Token-Gated Vote
1 token = 1 vote
Voting Engine
Aggregates in real time
Event Stream Bus
Broadcasts to all clients
Live Results
Coach dashboard updates
Revenue Distribution
Poll closes · Monetisation engine · Club earns
Poll Closes
Timer expires
Monetisation Engine
Calculates club share
Club Revenue
Up to 70% of token sales
Analytics Dashboard
Full engagement data
Patent Pending Technology

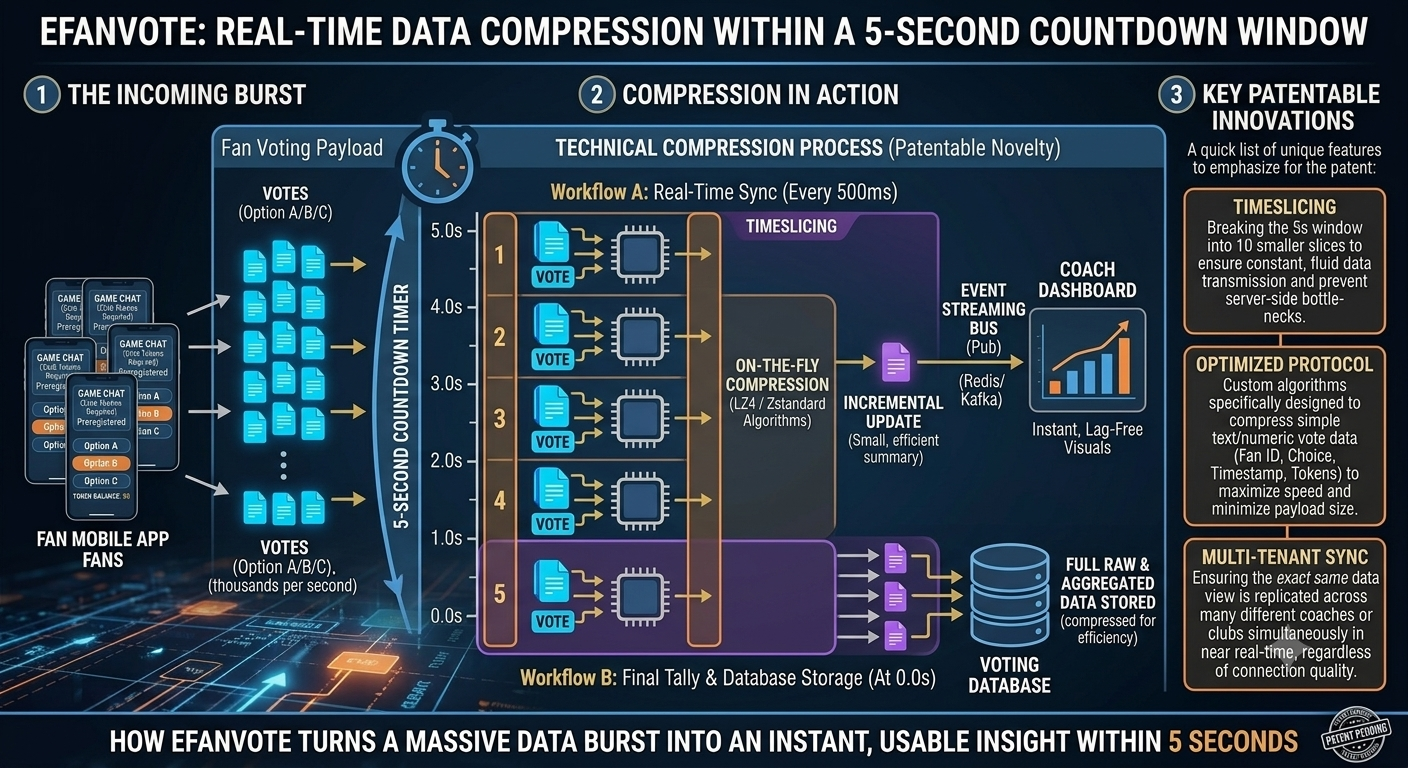

Real-Time Data Compression
How eFanVote turns a massive burst of fan votes into an instant, usable insight for coaches — within a 5-second countdown window.
The Incoming Burst
When a coach posts a live poll, thousands of fans on the mobile app cast votes simultaneously — each carrying a Fan ID, their chosen option (A/B/C), a timestamp, and their token balance. This creates a massive, near-simultaneous data burst that must be processed within the 5-second countdown window.
- Fan Mobile App sends vote payloads
- Each vote: Fan ID · Choice · Timestamp · Tokens
- Thousands of votes per second at peak
- 5-second countdown timer governs the window
Compression in Action
The 5-second window is sliced into 10 x 500ms intervals (Timeslicing). Each slice runs on-the-fly compression using LZ4 / Zstandard algorithms — producing a small, efficient incremental update. At 0.0s, Workflow B fires the final tally and stores the full raw and aggregated dataset to the Voting Database.
- Workflow A: Real-Time Sync every 500ms
- Timeslicing prevents server-side bottlenecks
- LZ4 / Zstandard on-the-fly compression
- Incremental updates pushed to Event Streaming Bus
- Workflow B: Final tally + DB storage at 0.0s
- Full raw & aggregated data stored compressed
Key Patentable Innovations
Three core innovations make this system novel and patentable — each solving a distinct engineering challenge in real-time fan voting at scale.
Timeslicing
Breaking the 5s window into 10 smaller slices ensures constant, fluid data transmission and prevents server-side bottlenecks under peak load.
Optimised Protocol
Custom algorithms compress simple text/numeric vote data (Fan ID, Choice, Timestamp, Tokens) to maximise speed and minimise payload size.
Multi-Tenant Sync
The exact same data view is replicated across many different coaches or clubs simultaneously in near real-time, regardless of connection quality.
Result
A massive data burst → an instant, usable insight for the coach — in 5 seconds flat.
Event Streaming Bus (Redis / Kafka) · Coach Dashboard · Instant, Lag-Free Visuals · Patent Pending
Full System View
Complete Architecture
All four phases combined — showing how every component connects from fan registration through to club revenue.
Uploaded architecture diagram — Event Streaming Bus · Voting Engine · Monetisation Engine · Coach Interface · Club Revenue Dashboard
Platform Rules
How Voting Is Protected
Token-Gated Only
You must hold at least 1 Club Token to cast a vote. No tokens = no vote. This eliminates bots and spam.
One Vote Per Fan
Each fan can vote once per poll. The Voting Engine enforces this at the database level — no duplicates.
Authenticated Session
BetterAuth validates every vote request. Anonymous or expired sessions are rejected before reaching the engine.
Real-Time Aggregation
The Event Streaming Bus broadcasts live percentage updates to all connected clients within milliseconds.
Countdown Timer
Every poll has a configurable timer. When it expires the poll locks automatically — no late votes accepted.
Immutable Results
Once a poll closes, results are locked and stored permanently. Coaches and clubs can review any past poll.
